How to Build a Gantt Chart in Excel

Hi ,

Many teams pay for tools like Asana, Monday, or Notion just to manage a simple project timeline.

The reason is not that Excel cannot do it. It is because most attempts to build a Gantt chart in Excel end up looking confusing, fragile, or difficult to maintain.

In this tutorial you will learn how to build a clean, modern Gantt chart in Excel that automatically updates when dates change and visually tracks progress on every task.

The entire chart runs on just three inputs:

• Start date
• Duration
• Progress

Once those values are entered, everything else updates automatically.

By the end you will have a dynamic project tracker that you can use immediately at work.

What Is a Gantt Chart?

A Gantt chart is a visual project timeline.

It shows:

• What tasks need to be completed
• Who is responsible for each task
• When each task starts and ends
• How much progress has been made

Instead of scanning through rows of dates, the timeline is displayed visually so you can instantly understand the project schedule.

Step 1: Create the Project Task Table

Start by building a simple table that contains the core details for each task.

Create the following headers (modify them as required):

TASK
PHASE
OWNER
START
DURATION
END
COMPLETED
PROGRESS

Enter the tasks for your project underneath the Task header.

For example:

Define project scope
Stakeholder sign off
User research and interviews
Wireframes and mockups
Brand and style guide
Design review and feedback
Backend development
Frontend development
QA and testing
Bug fixes
Marketing preparation
Go live

Once the task list is complete, convert the range to an Excel Table.

Select the data and press: Ctrl + T

Ensure the "My table has headers" option is selected.

Tables are important because they automatically expand when you add new tasks and they fill formulas down automatically.

Via the Table Design tab, rename the table to: Project (or a name that reflects your project). You can do this in the Table Design tab:

Tip: choose a table style in keeping with your company branding or project theme:

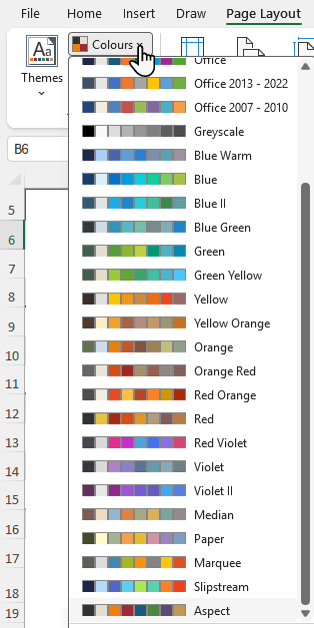

Note: my colour theme is Aspect. Change it from the Page Layout tab:

Step 2: Add Drop Down Lists for Faster Data Entry

Typing the same values repeatedly slows data entry and introduces mistakes.

Instead, add drop down lists using Data Validation.

For the Phase column:

Data → Data Validation → List

Source: Planning,Design,Development,Launch

Now every row contains a drop down for quick selection.

Repeat the same process for the Owner column.

Example list: James,Lisa,Priya,Sarah,Tom

Now assigning tasks becomes just a few clicks.

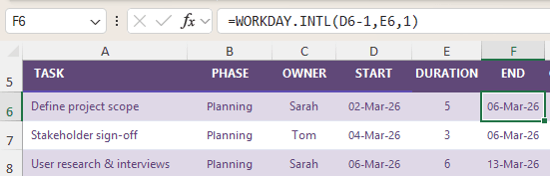

Step 3: Calculate the End Date Automatically

The end date should be calculated based on:

• Start date
• Task duration
• Working days only

Use the WORKDAY.INTL function:

Explanation:

The start date minus one ensures the first working day is included.

The duration determines how many working days are added.

The value 1 specifies Saturday and Sunday as weekend days.

Because the formula is inside a table, Excel automatically fills it down the entire column.

If the start date or duration changes, the end date updates instantly.

Step 4: Track Task Progress

Next add progress tracking.

The Completed column represents the number of work days already finished for that task.

This value cannot be calculated automatically because it depends on how your team measures progress.

For example:

If a task takes 10 days and about 3 days of work have been completed, enter 3.

Next calculate the progress percentage.

Use this formula:

Format the column as Percentage.

Whenever the completed value changes, the progress updates automatically.

Step 5: Generate the Project Timeline Automatically

Instead of manually typing dates across the worksheet, generate them dynamically using the SEQUENCE function.

Enter this formula in the first timeline cell:

Explanation:

1 in the first argument represents one row of values.

The number of columns equals the project length calculated from the earliest start date to the latest end date.

The sequence begins at the earliest start date.

This creates a dynamic project calendar that expands automatically if the schedule changes.

Create a custom number format for the dates so the day and month appear on separate lines.

Example format:

dd
mmm

Enter Ctrl+J after 'dd' to force a line break. Enable Wrap Text and narrow the columns so they resemble a timeline grid.

Step 6: Build the Gantt Chart with Conditional Formatting

The Gantt chart itself is simply a grid that fills with colour when a timeline date falls between a task's start and end date. We'll use Conditional Formatting formulas to automatically fill the colours.

Select the entire grid where tasks intersect with timeline dates.

Create a new conditional formatting rule using a formula:

Explanation:

The date in the header must be greater than or equal to the task start date.

The date must also be less than or equal to the task end date.

Apply a light fill colour.

Excel now draws the Gantt bars automatically across the calendar.

Step 7: Show Completed Work Inside the Gantt Bar

Next highlight the portion of work that has already been completed. With the entire grid selected, add another conditional formatting rule:

Apply a darker fill colour.

Now as the completed value increases, the darker section expands across the timeline.

This creates a visual progress indicator inside the Gantt chart.

Step 8: Highlight Completed Tasks

You can also highlight tasks that are fully finished in a different colour.

Create another rule:

Apply a green fill.

Tasks automatically turn green once progress reaches 100 percent.

Step 9: Shade Weekends

Weekend shading makes the schedule easier to read.

Create another conditional formatting rule:

Explanation:

The return type of 2 makes Monday equal to 1 and Sunday equal to 7.

If the value is 6 or 7, the day is Saturday or Sunday.

Apply a grey fill colour.

Step 10: Highlight Today's Date

Add a visual indicator for today's date.

Create a conditional formatting rule:

Now the chart automatically highlights the current date every day.

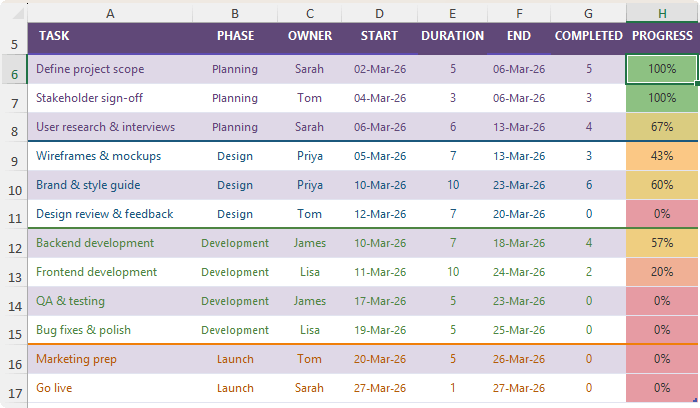

Step 11: Add Visual Progress Indicators

In the Progress column, apply a color scale under Conditional Formatting.

Adjust the colours to match your theme.

Tasks that are finished appear green while tasks just starting appear orange and tasks not started appear red.

This makes it easy to assess project status at a glance.

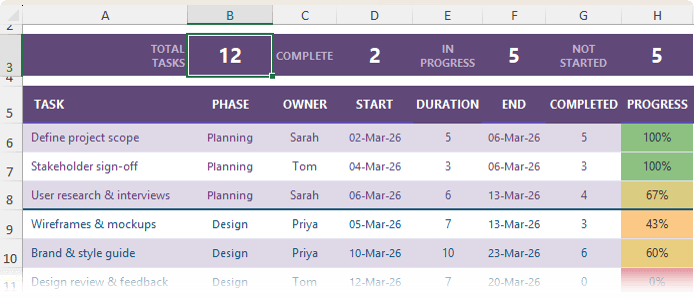

Step 12: Add Project Summary Metrics

You can also add quick statistics at the top of the tracker.

Total tasks:

Completed tasks:

Tasks in progress:

Tasks not started:

These metrics provide an instant overview of project status.

Step 13: Add a Legend

Insert cell fill colours and label what they represent, so it's easy for your audience to interpret the Gantt bars:

Tip: colour code the font for the different phases so it's easy to see them grouped together.

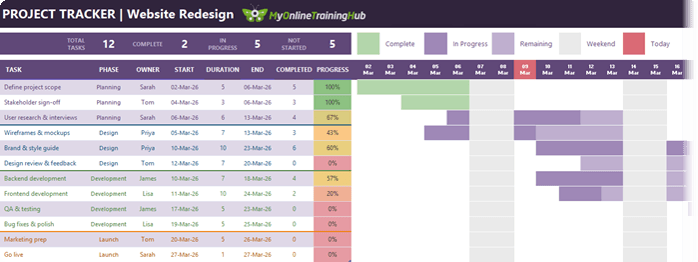

Final Result

From a blank worksheet you now have a fully dynamic Gantt chart.

It automatically adjusts when:

• Start dates change
• Task durations change
• Work progress updates

Everything runs on formulas and conditional formatting.

No add ins.
No macros.
No project management software required.
